| Product model | ZWN-1212FP |
| Nominal voltage | 12.8V |
| Nominal capacity@25℃ | 12AH |
| Nominal energy | 153.6WH |
| Battery Cell type | cylinder |
| Combination（*s*p） | 4S2P |
| Maximum continuous charge current@25℃ | 12A |
| Maximum continuous discharge current | 12A |
| Internal resistance | ≤10mΩ |
| Full charge voltage | 14.6V |
| Discharge cut-off voltage | 10V |
| Operating temperature range | charge:0℃~55℃,Discharge:-20℃~60℃,Storage:-20℃~45℃ |
| Dimension（mm） | 152*65*94mm |
| Weight（KG） | 1.7KG |
| Terminal Type | F1 terminal/Screw terminal |
| Cover seal type | Screw Seal / Sealant Seal (Optional) |

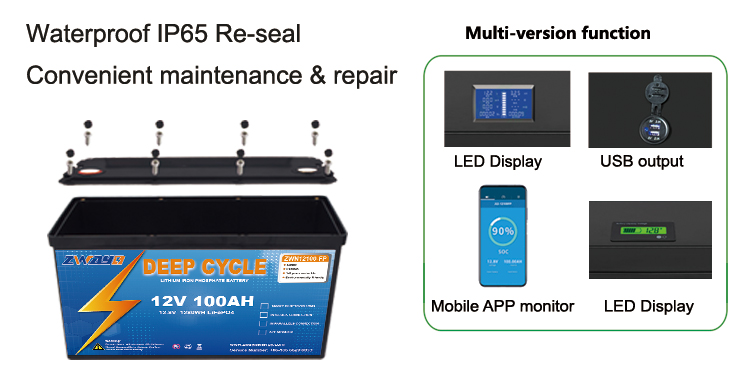

| Water proof | IP65 |
| Cycle life | 100% DOD Cycles @ 25℃,1C/1C:＞2000times 80% DOD Cycles @ 25℃,1C/1C:＞3000times 50% DOD Cycles @ 25℃,1C/1C:＞5000times |
| LCD display | Display voltage V / power% （Optional） |
| Bluetooth | Bluetooth with mobile app (optional) |
| Series and parallel function | Support series and parallel into 24V, 36V, 48V |
| Heating function | Optional, suitable for applications in low temperature and extremely cold regions |
