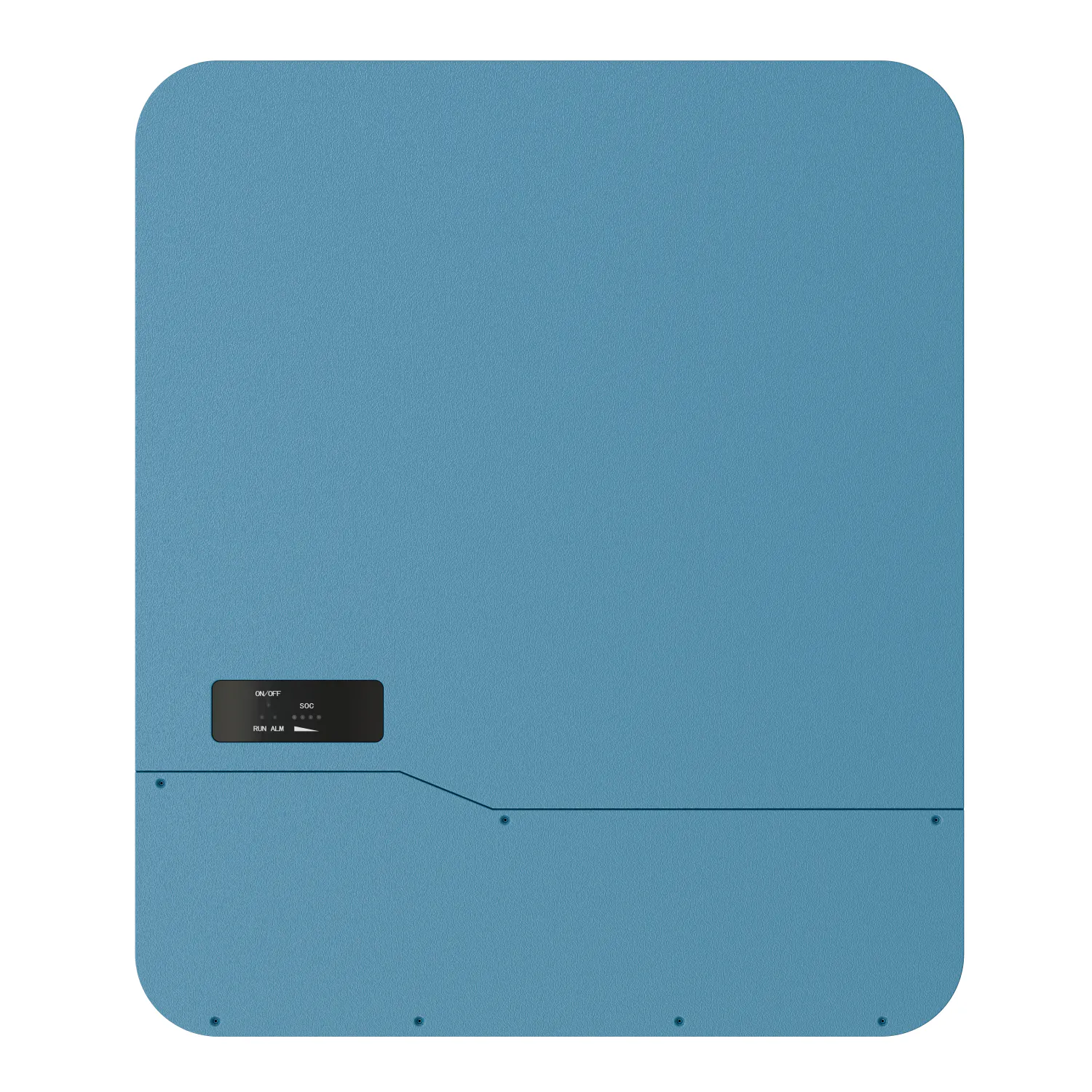

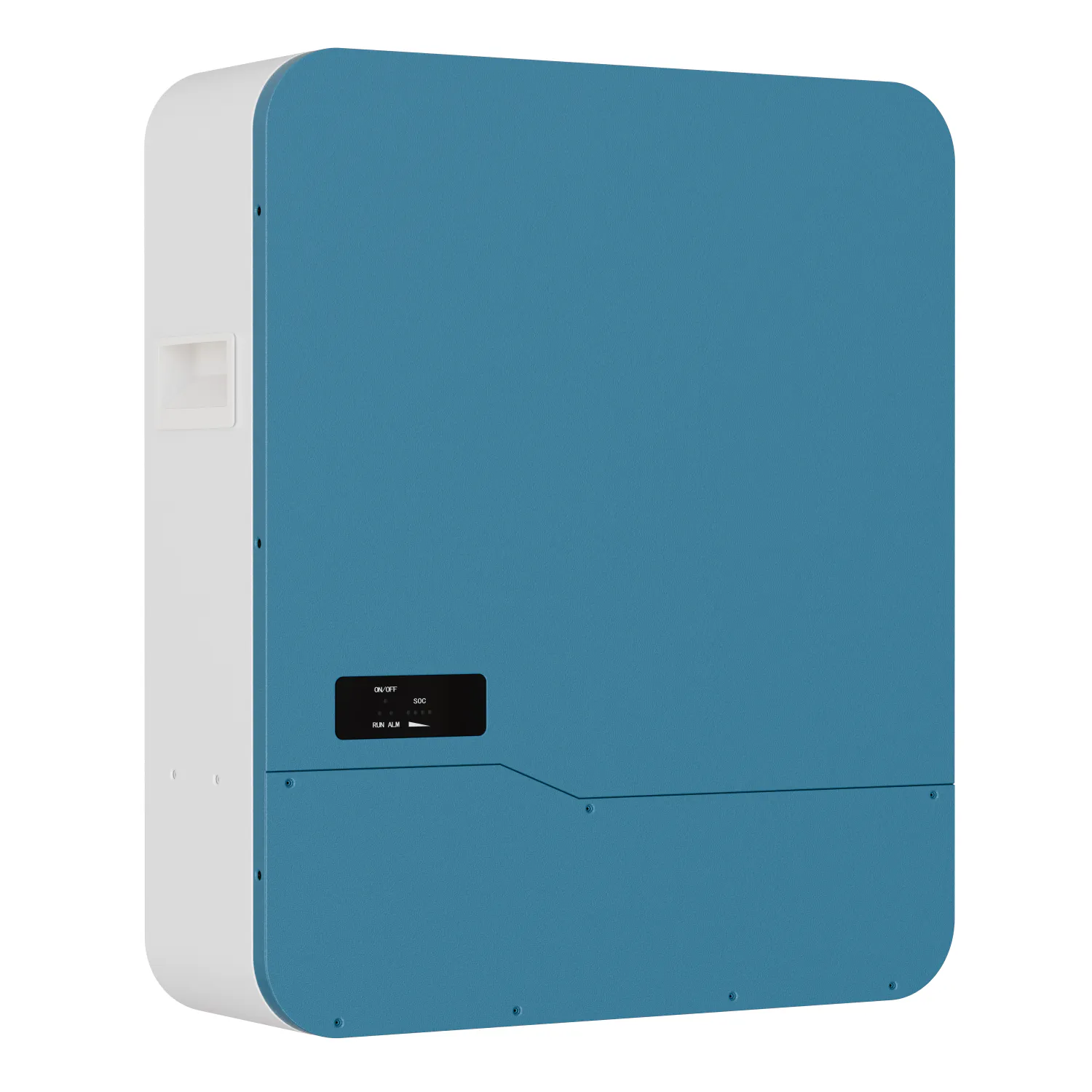

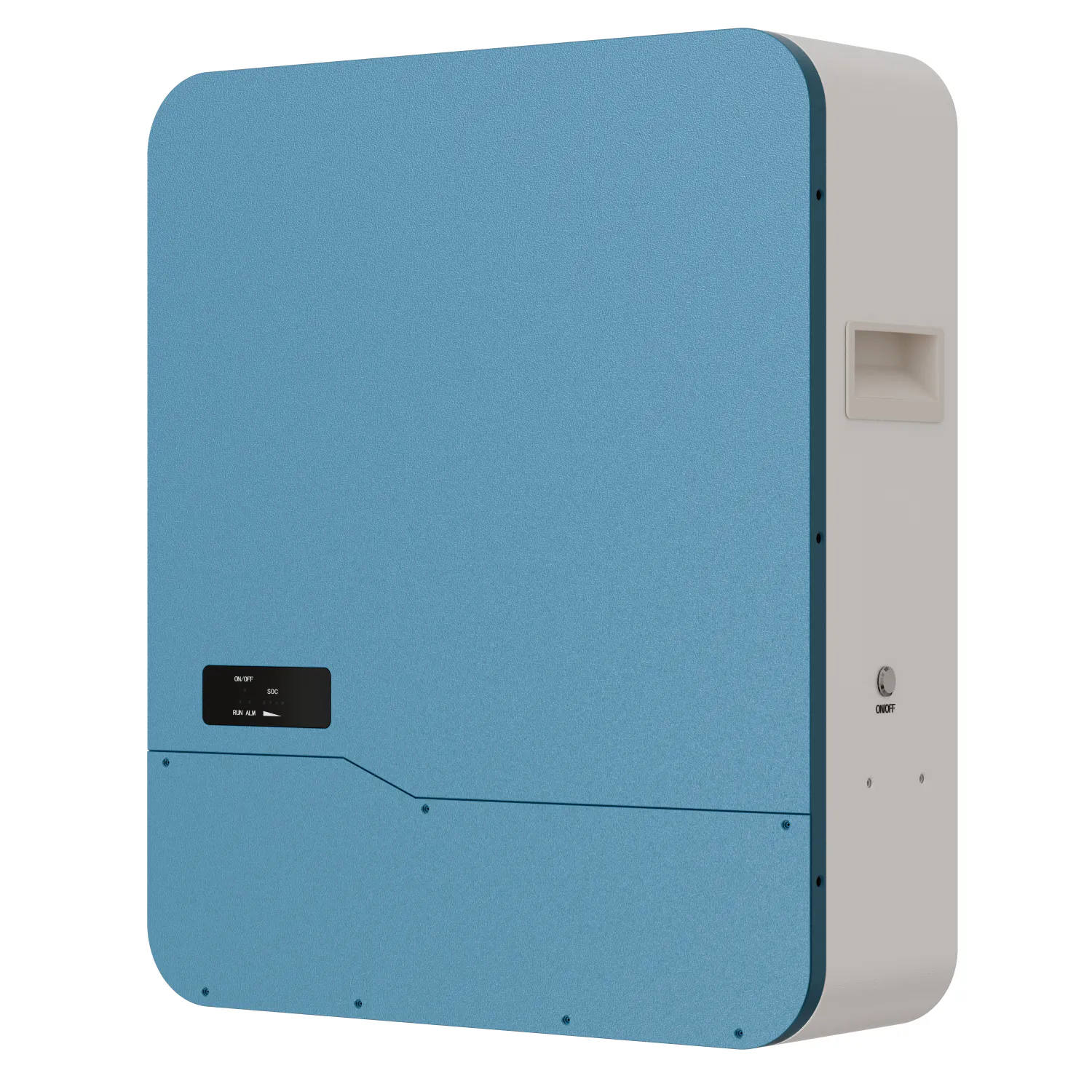

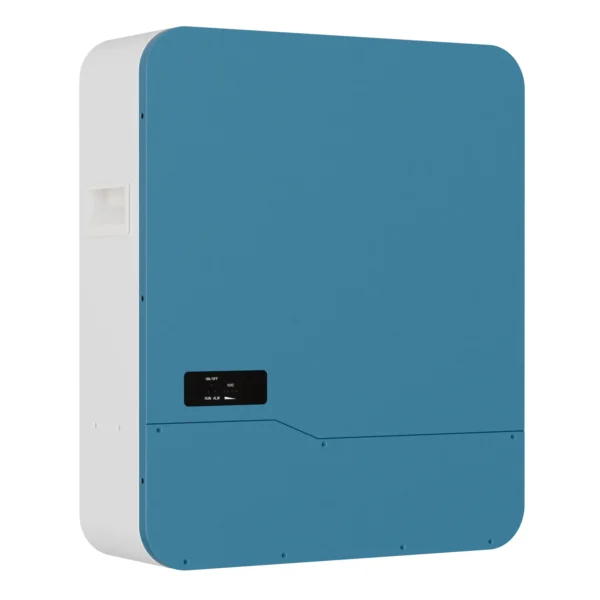

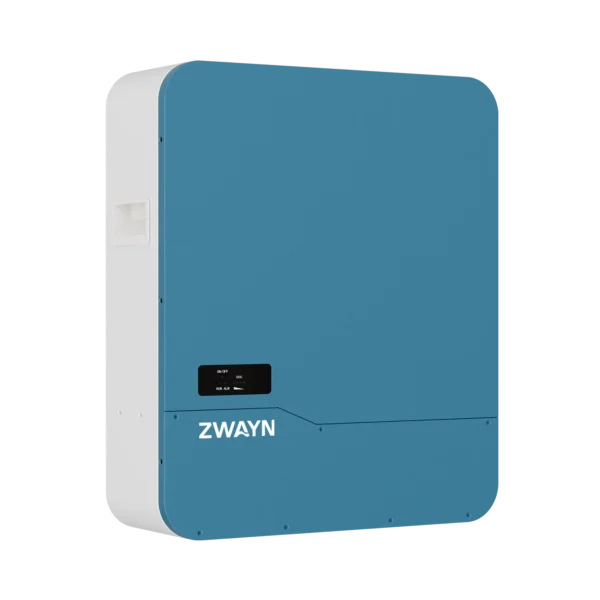

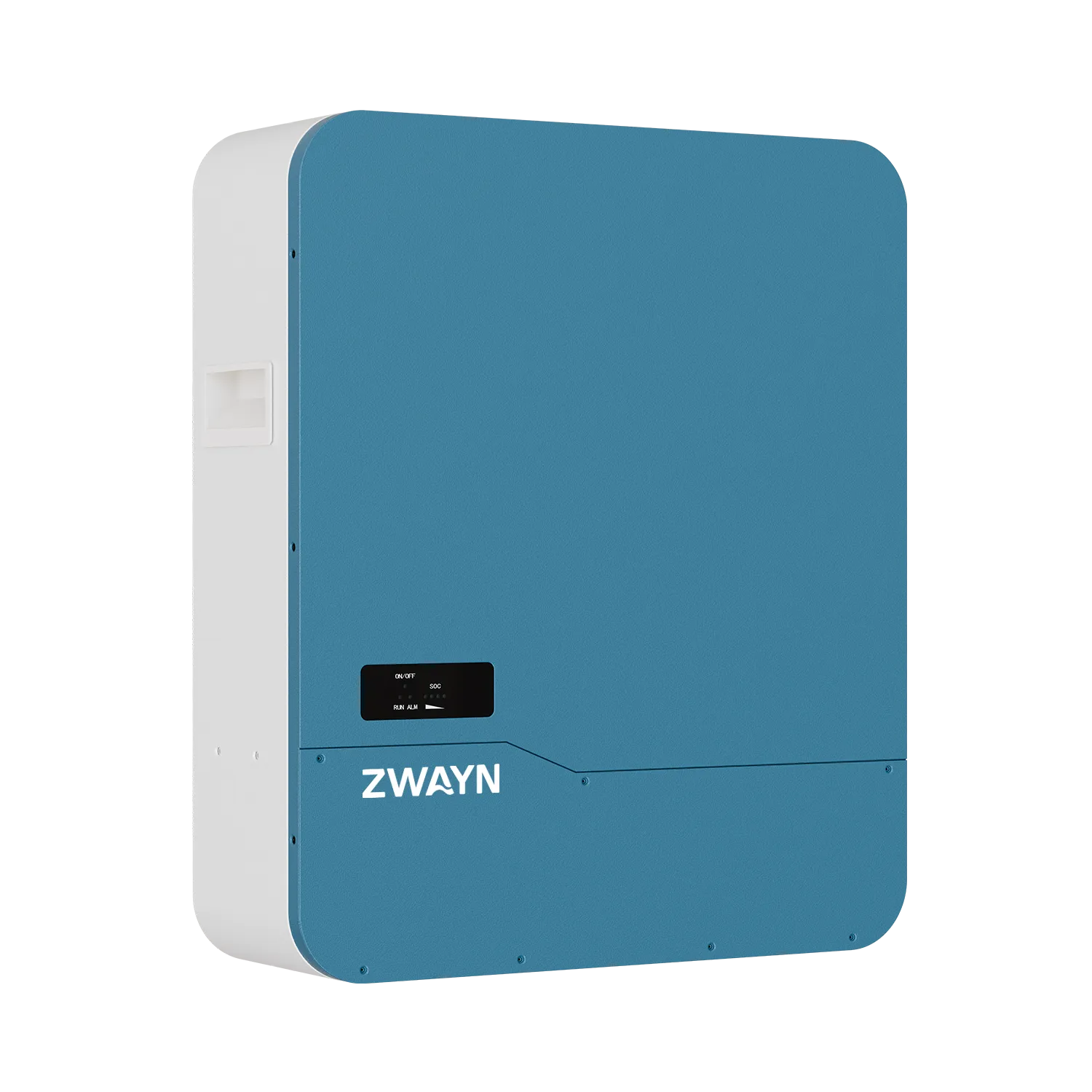

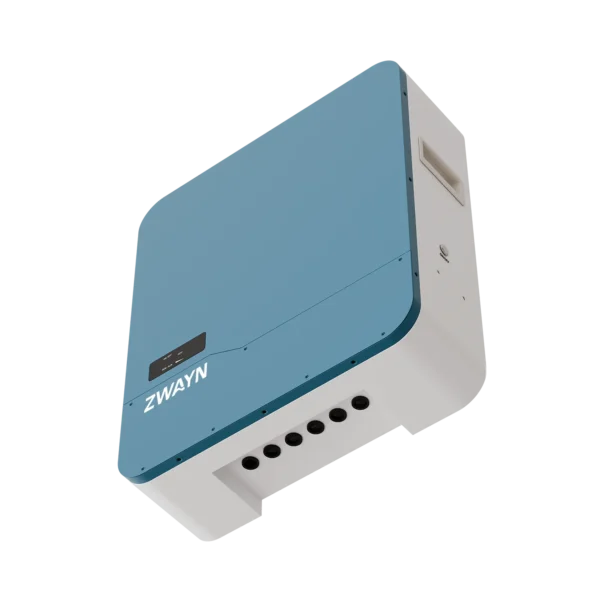

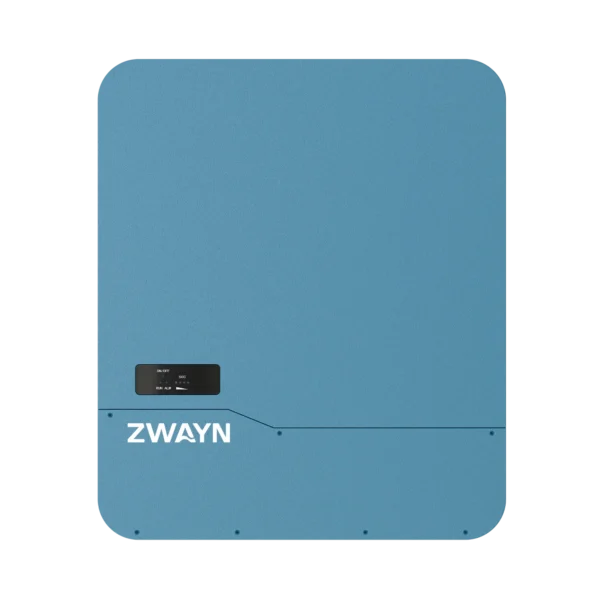

ES-BOX2 5kWh
51.2V 5KWH LiFePO4 Wall-Mounted Home Energy Storage Battery
Safe & stable:
1. Built in BMS with multiple protections;
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.
Application scenarios
Product Features
BMS algorithms and Cloud to achieve BMS 2A full-time balancing, ensureaccurate SOC.
Smart BMS
Intelligently identifythe master-slave batteriesauto DlP address
Easy maintenance
Compact and lightweightfor easy installation
OTA
OTA Remote upgrade,simple maintenance
Deep Cycle
≥8000 Cycles (25°C+2°C,0.5C,80%DОD@65%EOL)
| Product Model | ES-BOX2 |
|---|---|
| Nominal Energy | 5KWH |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 58.4V |
| Max Charge Current | 100A |
| Discharge Cut-Off Voltage | 40V |
| Max Discharge Current | 100A |
| Parallel Function | Support 10 Units In Parallel |
| Communication Interface | RS485、RS232、CAN (Optional) |
| Calendar Life | 15+ Years @25°C80%DOD |
| Cycle Life * | ≥6000 Cycles (80%DOD) |
| Charge temperature range | 0~65℃C |
| Discharge temperature range | -20~65℃C |
| Certification | Cell:UL1642 /IEC62619/CE/ROHS /MSDS /UN38.3Pack:CE/MSDS /UN38.3 |

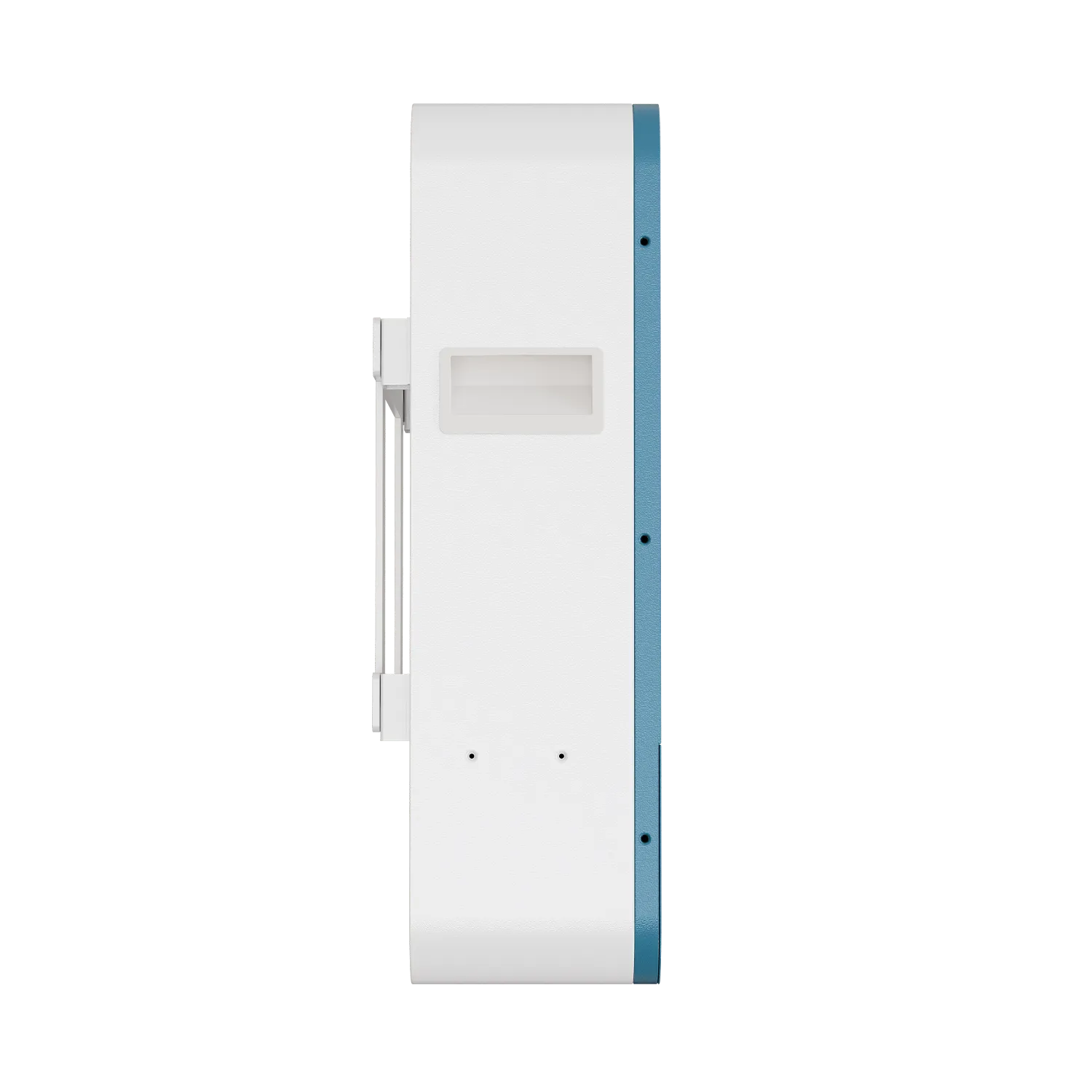

| Dimensions | 600*510*173mm |
| Weight | 58Kg |

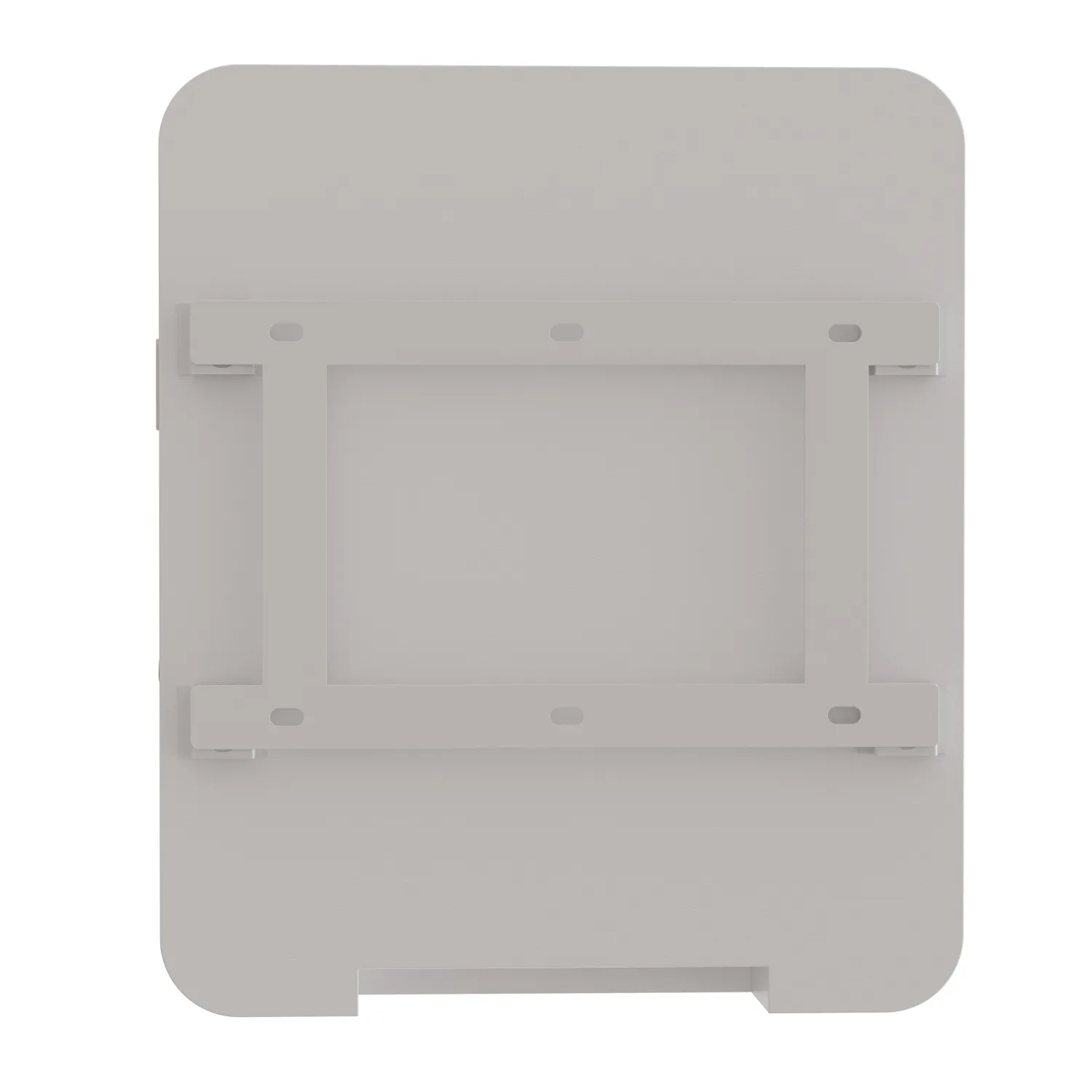

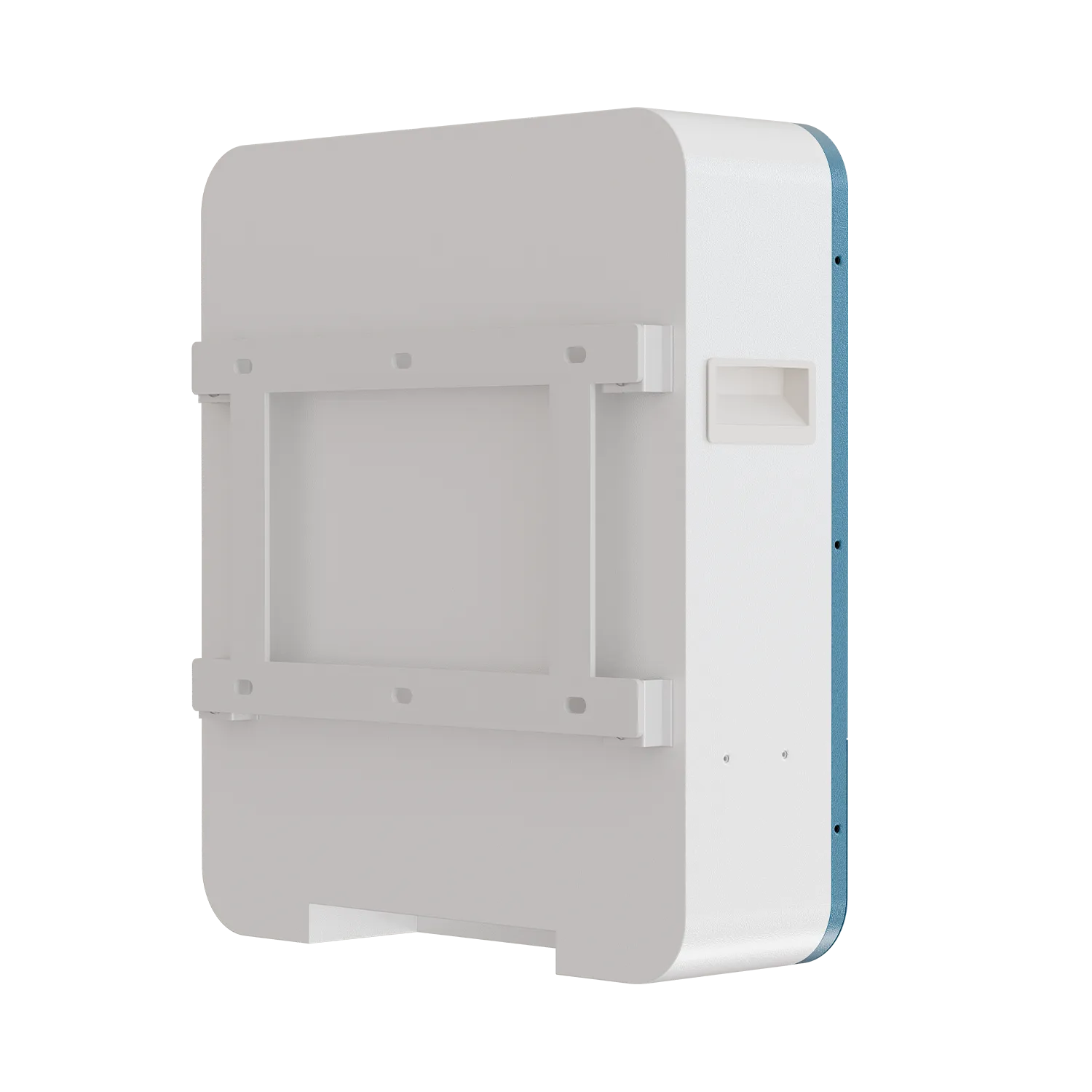

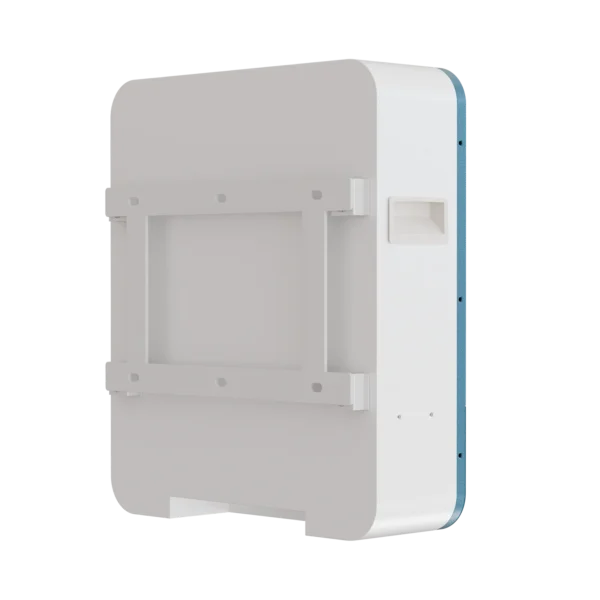

| Installation method | (Wall mounted) |
