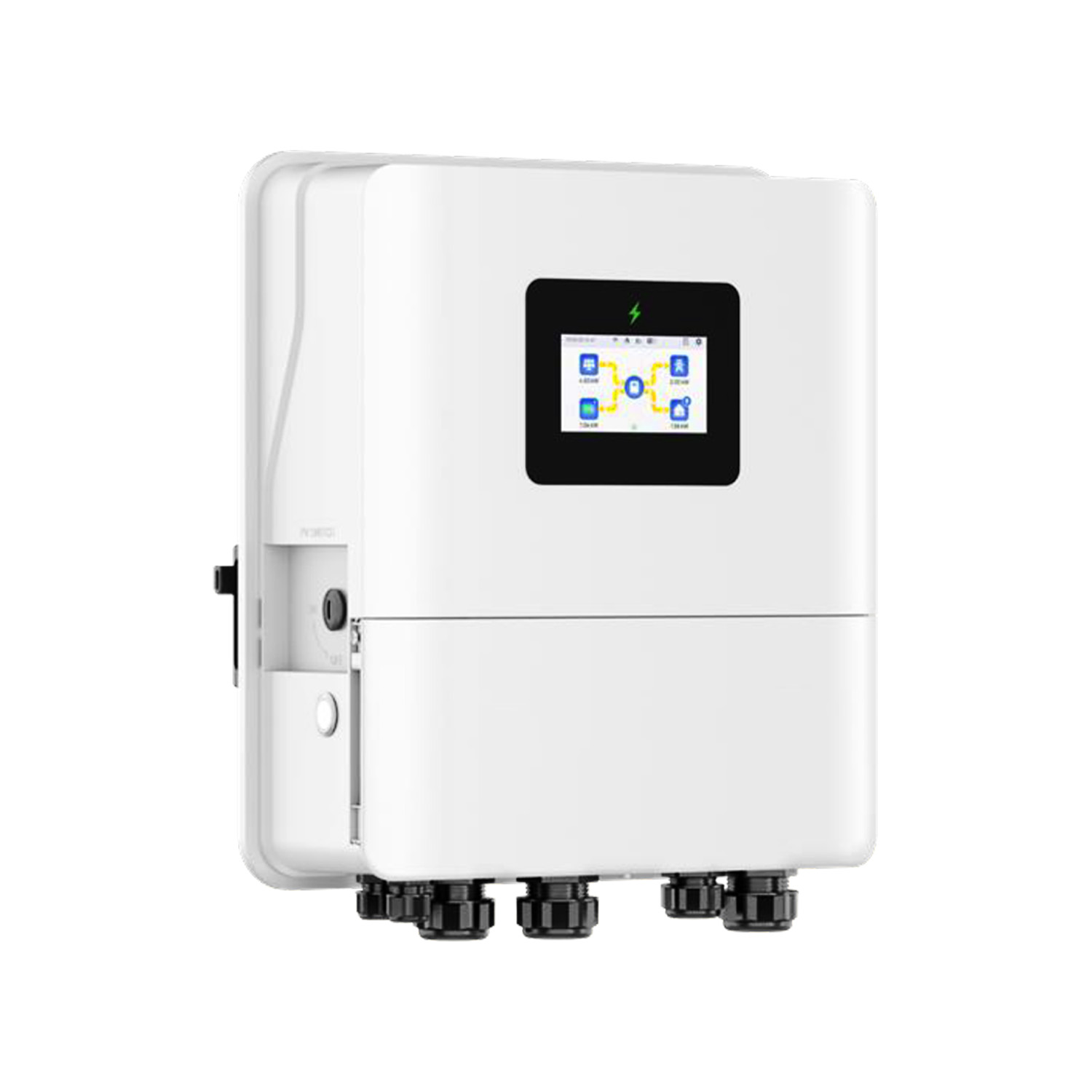

Hybrid Inverter G-CCMHE-06K-1PTW
IP65: Indoor or outdoor installation, image quality management, anti-power outage protection; compact and lightweight, easy to transport and save space.
9 kilowatts of available photovoltaic power supports 40-60V lithium batteries or lead-acid batteries
4.3-inch color LCD touch screen, easy to operate; built-in WiFi, supports remote monitoring and upgrades
Application scenarios
Product Features
BMS algorithms and Cloud to achieve BMS 2A full-time balancing, ensureaccurate SOC.
Smart BMS
Intelligently identifythe master-slave batteriesauto DlP address
Easy maintenance
Compact and lightweightfor easy installation
OTA
OTA Remote upgrade,simple maintenance
Deep Cycle
≥8000 Cycles (25°C+2°C,0.5C,80%DОD@65%EOL)
| Model | G-CCMHE-06K-1PTW |
| Efficiency | |
| Max. Efficiency (PV to AC) | 97.3% |
| Eur. Efficiency (PV to AC) | 96.8% |
| Max. Efficiency (BAT to AC) | 94.3% |
| Input (PV) | |
| Max. PV Access Power | 12,000W |
| Max. PV Usable Power | 9,000W |
| Max. PV Voltage | 500V |
| Start-up Voltage | 90V |
| MPPT Voltage Range | 70V-480V |
| Max. Input Current | 18A/18A |
| Max. Short Circuit Current | 25A/25A |
| Nos. of MPPT | 2 |
| String per MPPT | 46023 |
| Input/Output (BAT) | |
| Battery Type | Lithium-ion/Lead-acid |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40V-60V |
| Max. Charging/Discharging Current | 135A/135A |
| Max. Charging/Discharging Power | 6,600W/6,600W |
| Input/Output (Grid) | |
| Nominal AC Output Power | 6,000W |
| Max. AC Apparent Power | 6,600VA |
| Rated AC Output Current | 27.3A/26.1A/25.0A |
| Max. AC Output Current | 28.7A |
| Max. Input Power From Grid | 9,000W |
| Max. Grid Passthrough Current | 41A |
| Rated Grid Voltage | 220V/230V/240V, L+N+PE |
| Grid Voltage Range | 150V-300V (Adjustable) |
| Rated Grid Frequency | 50Hz/60Hz |
| AC Frequency Range | 45Hz-55Hz/55Hz-65Hz (Adjustable) |
| Power Factor | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) |
| THDI | <3% (Rated Power) |
| Output (Back up) | |
| Nominal Output Power | 6,000W |
| Max. Output Power | 6,600VA |
| Rated AC Output Current | 27.3A/26.1A/25.0A |
| Peak Output Power (1min) | 7,200VA |
| Peak Output Power (10S) | 9,300VA |
| Nominal Output Voltage | 220V/230V/240V, L+N+PE |
| Nominal Output Frequency | 50Hz/60Hz |
| Transfer Time | 10ms (Typical) |
| THDV | <3% @100% R Load |
| Protection | |
| Protection Category | Class I |
| PV Switch | Optional |
| Anti-islanding Protection | Yes |
| AC Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| AC Short Circuit Protection | Yes |
| PV Reverse Protection | Yes |
| Surge Arrester | Type III |
| General | |
| Max. Operation Altitude | 4000m (>2000m derating) |
| Protection Degree | IP65 |
| Operating Temperature Range | -25℃~60℃(>45℃ derating) |
| Relative Humidity | 0-100% |
| Cooling | Smart Fan Cooling |
| Mounting | Wall bracket |
| Dimensions (W*H*D) | 367mm*421mm*215mm |
| Weight | 15.5Kg |
| HMI & COM | |
| Display | LED+LCD |
| Communication | CAN (for BMS), RS485, CAN (for parallel), 1*DO, 1*DI, Wi-Fi, LAN (Optional) |
| Certification | |
| Safety | IEC/EN 62109-1/2 |
| EMC | IEC/EN 61000-6-1/2/3/4 |
| Warranty | 5 Years |
