The Tower-X-HV-768V 314Ah high-voltage energy storage rack isbased on a modular design concept and consists of energy storageunits, control units, heat dissipation modules, and fire suppressionmodules. It has the characteristics of high energy density, long lifecycle, low self discharge rate, and environmental sustainability, makelithium battery energy storage rack products widely used in variousenergy storage.
Product
Tower-X-HV-768V 314Ah
LiFePO4 battery energy storage · 10-year warranty · delivered to 100+ countries
Price on request
- Automotive-grade LiFePO4 cells
- Self-developed smart BMS with cloud monitoring
- 10-year warranty, 15-year design life
- Quoted per project — reply within 12 hours
Key Benefits
- Safe and reliableLonger cycle life
- Exquisite craftsmanshipHigher specific energy, moreenvironmentally friendly
- Flexible stackinginstallation
- Integrated designConvenient installationand higher efficiency
- Built in fan acceleratesheat dissipation
- Full Bracket DesignFull space for each cell’sbest performance
- Smart BMS Big Power
- Freely stackable design,saving spaceand bracket costs.
Specifications
| Model | Tower-X-HV- 768V314Ah | ||||||||||
| Main parameter | |||||||||||
| Battery Type | LiFePO4 | ||||||||||
| Module Nominal Energy(kWh) | 16.08 | ||||||||||
| Module Nominal Voltage (V) | 51.2 | ||||||||||
| Rated Capacity(Ah) | 314 | ||||||||||
| No. Of System Module Series Connections (Optional) |
6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
| Rated Voltage Of the System(V) | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 | |
| System Working Voltage(V) | 268.8~345.6 | 313.6~403.2 | 358.4~460.8 | 403.2~518.4 | 448~576 | 492.8~633.6 | 537.6~691.2 | 582.4~748.8 | 627.2~806.4 | 672~864 | |
| System Nominal Energy(kWh) | 96.46 | 112.54 | 128.62 | 144.69 | 160.77 | 176.84 | 192.92 | 209 | 225.08 | 241.15 | |
| Discharge Energy Of The System (kWh) |
92.6 | 108.04 | 123.48 | 138.9 | 154.34 | 169.77 | 185.2 | 200.64 | 216.08 | 231.5 | |
| Charging/ Discharging Current (A) |
Rated Current | 157 | |||||||||
| Max. Current | 165 | ||||||||||
| Overload Current | 170(10sec,25°C) | ||||||||||
| Active Balancing | Optional | ||||||||||
| Communication Protocol | CAN2.0 | ||||||||||
| Operating Temperature Range (C) | -10~55 | ||||||||||
| Operating Humidity Range | ≤95% (No condensation) | ||||||||||
| Operating Altitude | ≤2000m | ||||||||||
| System Cooling Method | Fan cooling | ||||||||||
| Waterproof Rating | IP20 | ||||||||||
| Installation Place | Indoors | ||||||||||
| Net Weight (kg) | 986 | 1104 | 1222 | 1340 | 1458 | 1576 | 1694 | 1812 | 1930 | 2048 | |
| Dimensions (mm) | 1050*831*2070 | ||||||||||
| Storage Temperature(C) | 0~35 | ||||||||||
| Recommended Depth of Discharge (DOD) |
90% | ||||||||||
| Cycle Life | ≥10000 Cycles (25°C±2℃, 0.35C, 80%DOD@65%EOL) | ||||||||||
| Certification | Cell: UL1973/IEC62619/UL9540A/TUV/CE/MSDS/UN38.3 | ||||||||||
| Warranty | 5 Years(Under Warranty Terms) | ||||||||||
| Energy Throughput | 211MWh | 246MWh | 281MWh | 317MWh | 352MWh | 387MWh | 422MWh | 458MWh | 493MWh | 528MWh | |

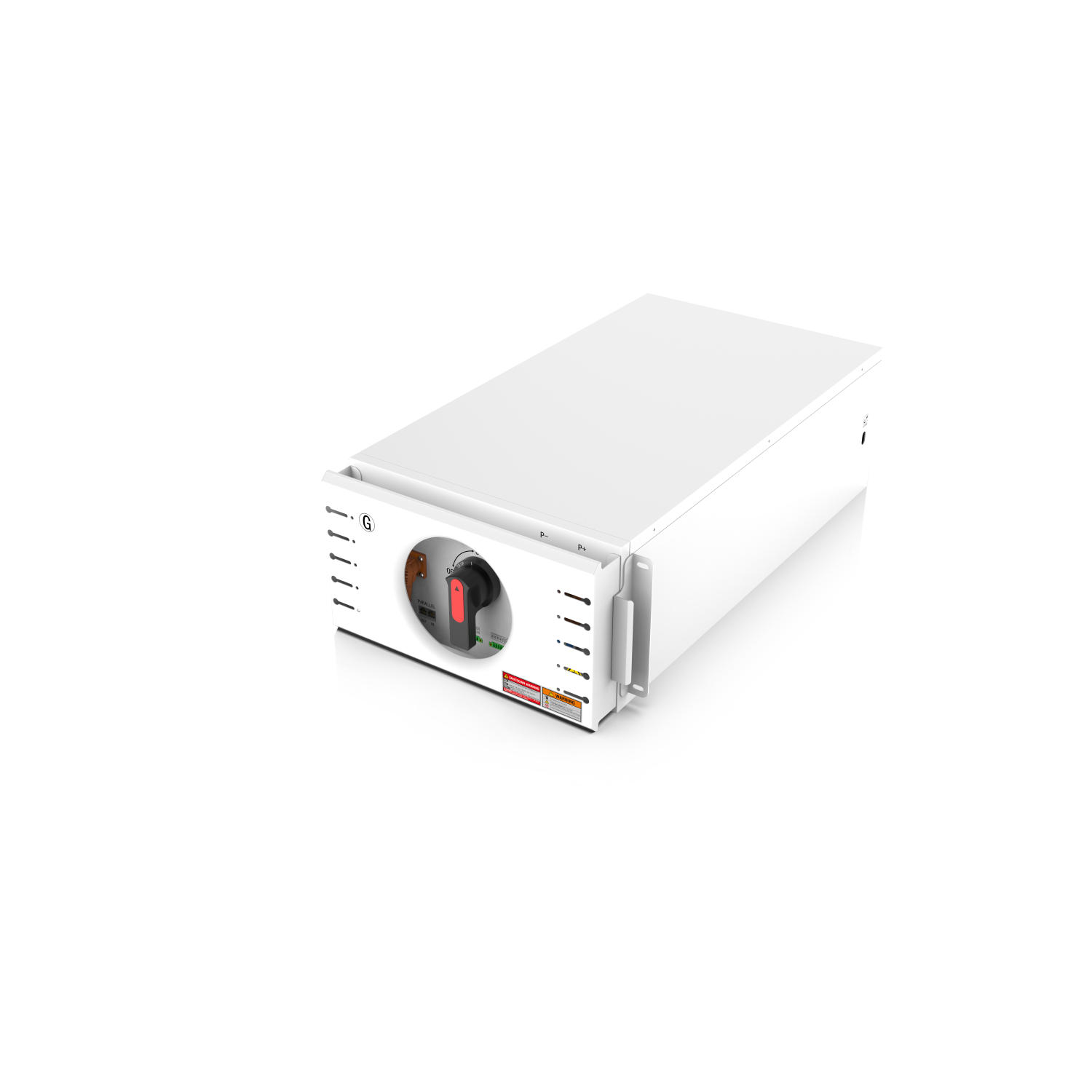

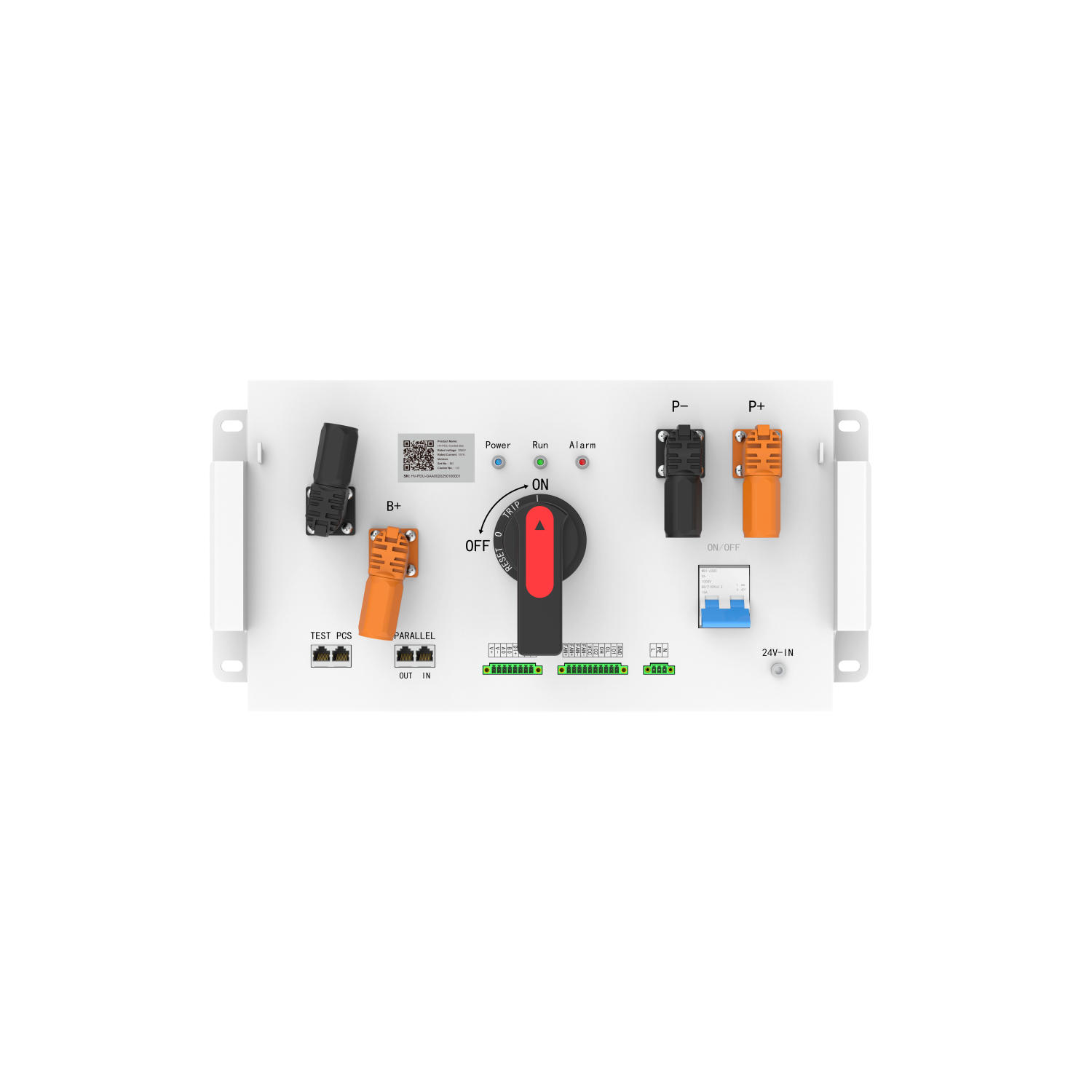

| PDU | HV-PDU 750VDC100A(WIFI) | HV-PDU 1000VDC250A |
| Operating Voltage | 250~750Vdc | 250~1000Vdc |
| Rated Charge/Discharge Current | 50A | 157A |
| Max. Charge/Discharge Current | 100A | 165A |
| Operating Temperature Range | Charge: 0~ 50°C/Discharge: – 10 ~ 55℃ | Charge: 0~ 50°C/Discharge: – 10 ~ 55°℃ |
| Waterproof Rating | IP20 | IP20 |
| Dimensions (W x D × H) | 440*570*150mm | 420*807*238mm |
| Weight | “=16kg” | “=29kg” |
| Parallel Connection | Support | Support |
