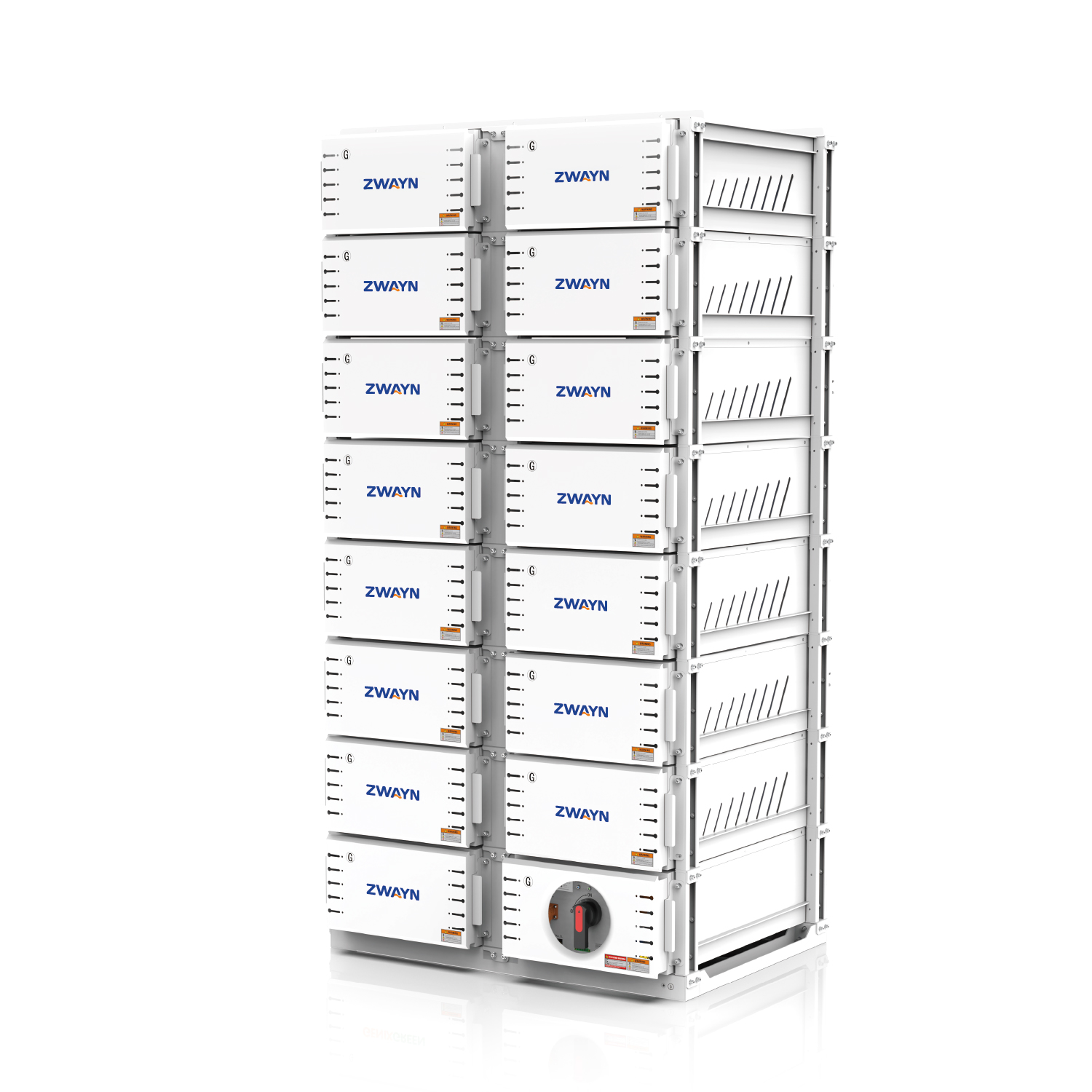

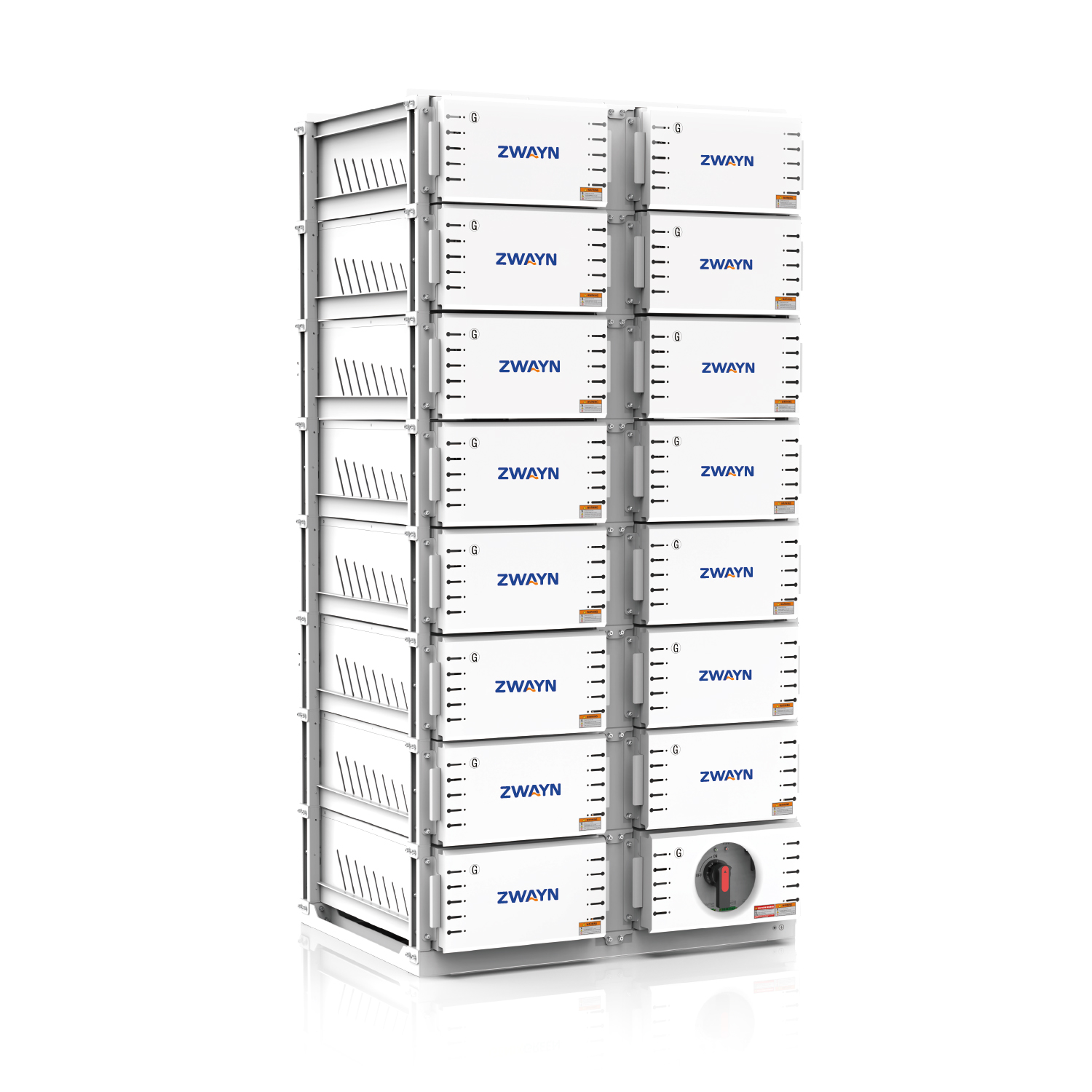

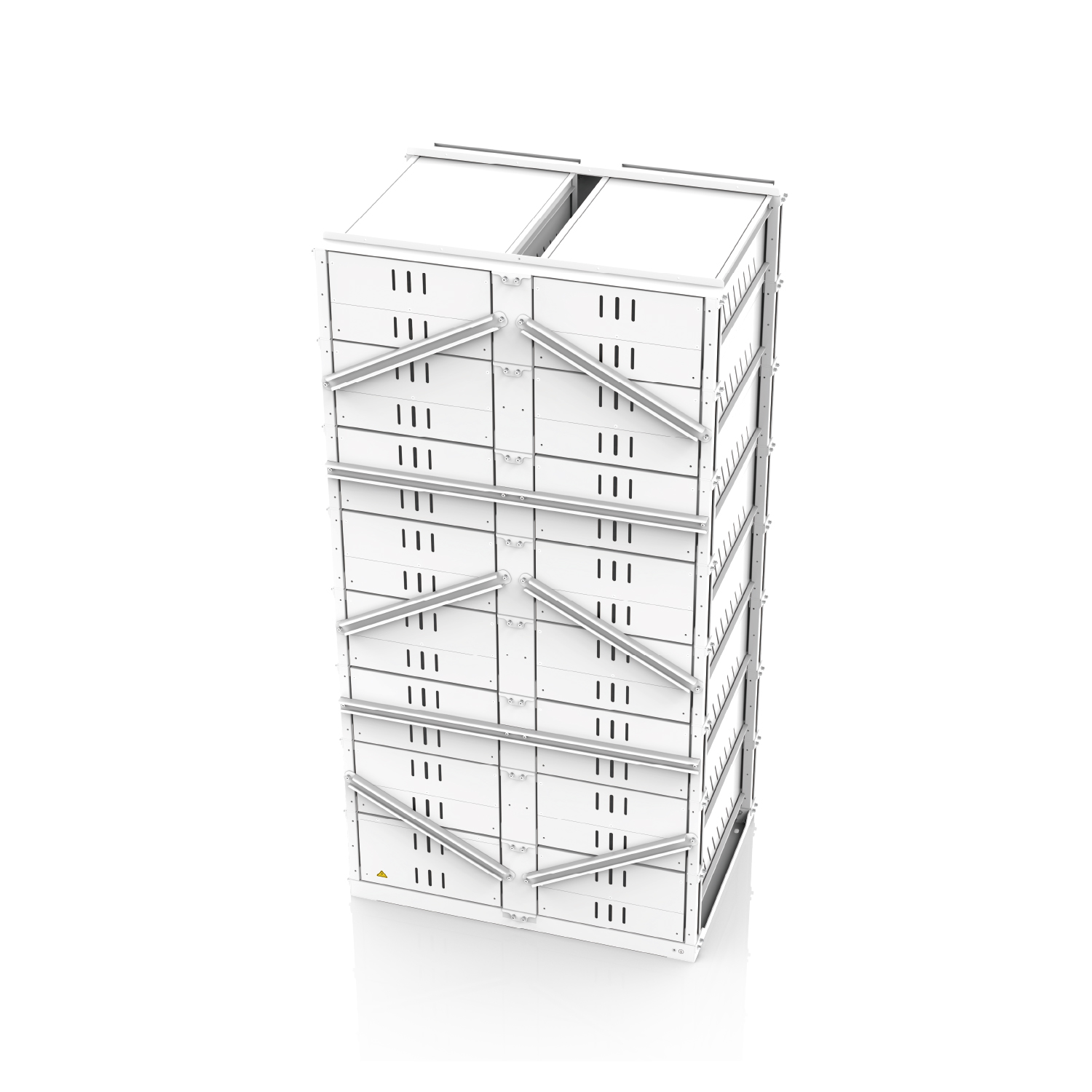

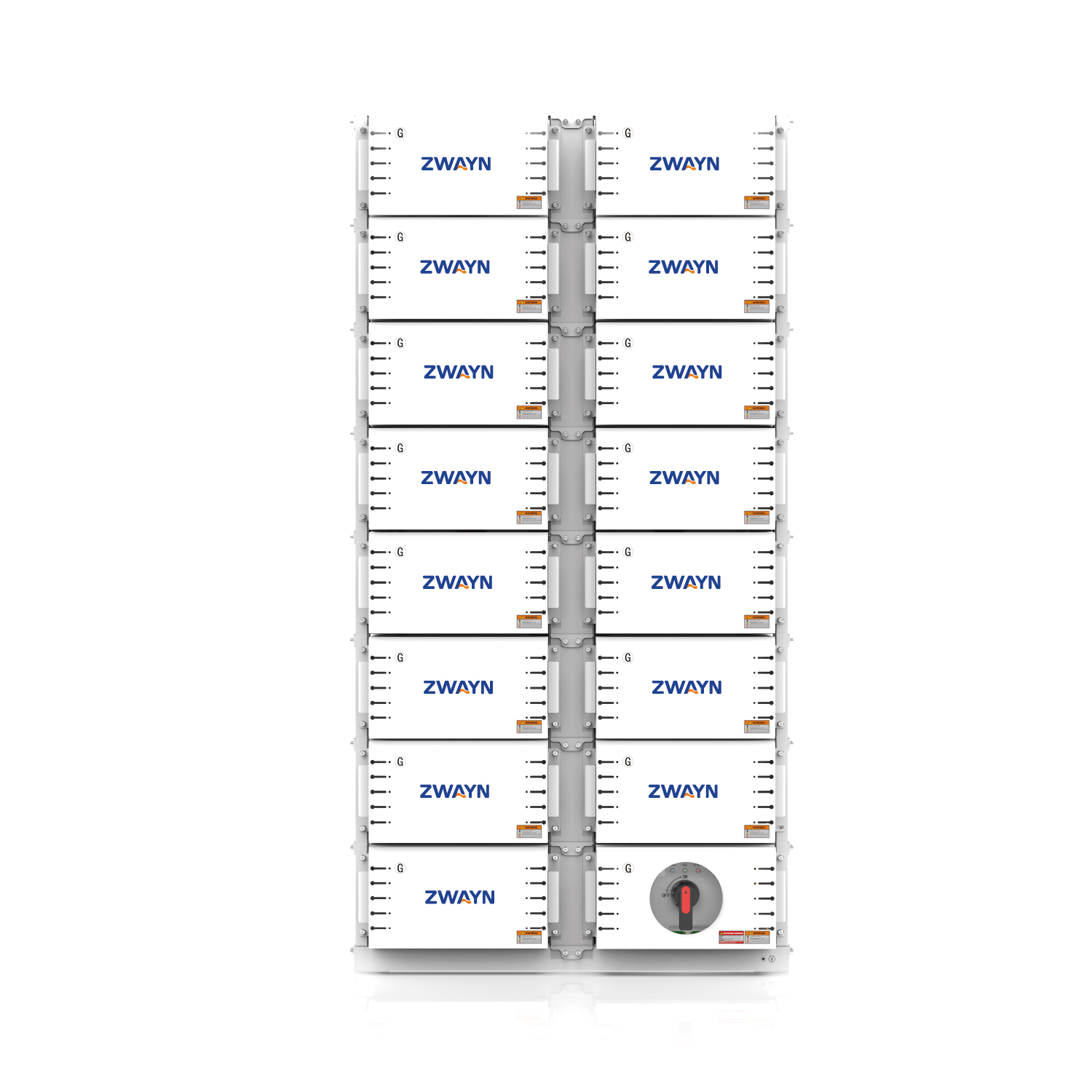

Tower-X-HV-768V314Ah
Tower-X-HV-768V 314Ah is a high-voltage energy storage rack battery, which is based on the modular design concept and consists of an energy storage unit, a control unit, a heat dissipation module, and a fire extinguishing module.It has the characteristics of high energy density, long cycle life, low self-discharge rate, and environmental sustainability, so that lithium battery energy storage rack products are widely used in various fields.
Application scenarios
Product Features
BMS algorithms and Cloud to achieve BMS 2A full-time balancing, ensureaccurate SOC.
Smart BMS
Intelligently identifythe master-slave batteriesauto DlP address
Easy maintenance
Compact and lightweightfor easy installation
OTA
OTA Remote upgrade,simple maintenance
Deep Cycle
≥8000 Cycles (25°C+2°C,0.5C,80%DОD@65%EOL)
| Model | Tower-X-HV- 768V314Ah | ||||||||||
| Main parameter | |||||||||||
| Battery Type | LiFePO4 | ||||||||||
| Module Nominal Energy(kWh) | 16.08 | ||||||||||
| Module Nominal Voltage (V) | 51.2 | ||||||||||
| Rated Capacity(Ah) | 314 | ||||||||||
| No. Of System Module Series
Connections (Optional) |
6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |
| Rated Voltage Of the System(V) | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 | |
| System Working Voltage(V) | 268.8~345.6 | 313.6~403.2 | 358.4~460.8 | 403.2~518.4 | 448~576 | 492.8~633.6 | 537.6~691.2 | 582.4~748.8 | 627.2~806.4 | 672~864 | |
| System Nominal Energy(kWh) | 96.46 | 112.54 | 128.62 | 144.69 | 160.77 | 176.84 | 192.92 | 209 | 225.08 | 241.15 | |
| Discharge Energy Of The
System (kWh) |
92.6 | 108.04 | 123.48 | 138.9 | 154.34 | 169.77 | 185.2 | 200.64 | 216.08 | 231.5 | |
| Charging/
Discharging Current (A) |
Rated Current | 157 | |||||||||
| Max. Current | 165 | ||||||||||
| Overload Current | 170(10sec,25°C) | ||||||||||
| Active Balancing | Optional | ||||||||||
| Communication Protocol | CAN2.0 | ||||||||||
| Operating Temperature Range (C) | -10~55 | ||||||||||
| Operating Humidity Range | ≤95% (No condensation) | ||||||||||
| Operating Altitude | ≤2000m | ||||||||||
| System Cooling Method | Fan cooling | ||||||||||
| Waterproof Rating | IP20 | ||||||||||
| Installation Place | Indoors | ||||||||||
| Net Weight (kg) | 986 | 1104 | 1222 | 1340 | 1458 | 1576 | 1694 | 1812 | 1930 | 2048 | |
| Dimensions (mm) | 1050*831*2070 | ||||||||||
| Storage Temperature(C) | 0~35 | ||||||||||
| Recommended Depth of
Discharge (DOD) |
90% | ||||||||||
| Cycle Life | ≥10000 Cycles (25°C±2℃, 0.35C, 80%DOD@65%EOL) | ||||||||||
| Certification | Cell: UL1973/IEC62619/UL9540A/TUV/CE/MSDS/UN38.3 | ||||||||||
| Warranty | 5 Years(Under Warranty Terms) | ||||||||||
| Energy Throughput | 211MWh | 246MWh | 281MWh | 317MWh | 352MWh | 387MWh | 422MWh | 458MWh | 493MWh | 528MWh | |

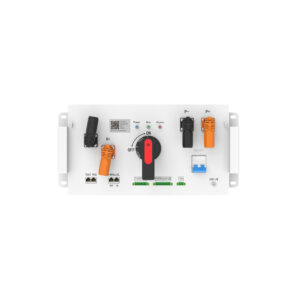

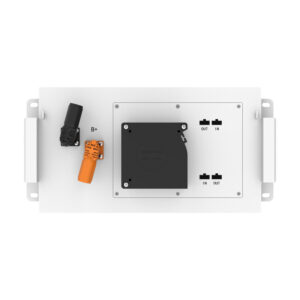

PDU Model: HV-PDU-1000V DC250A
| PDU | HV-PDU 1000V DC250A |
| Operating Voltage | 250~1000Vdc |
| Rated Charge/Discharge Current | 157A |
| Max. Charge/Discharge Current | 165A |
| Operating Temperature Range | Charge: 0~ 50°C/Discharge: – 10 ~ 55°℃ |
| Waterproof Rating | IP20 |
| Dimensions (W x D × H) | 420*807*238mm |
| Weight | “=29kg” |
| Parallel Connection | Support |

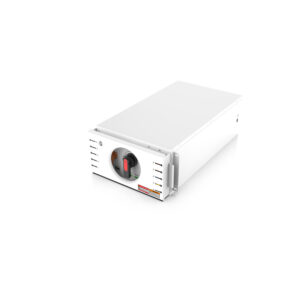

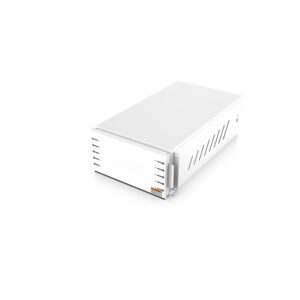

Single cluster model: HV-Tower-16S 314A 16.08kWh
| Model | Tower-X-HV- 768V314Ah | ||||||||||
| Main parameter | |||||||||||
| Battery Type | LiFePO4 | ||||||||||
| Module Nominal Energy(kWh) | 16.08 | ||||||||||
| Module Nominal Voltage (V) | 51.2 | ||||||||||
| Rated Capacity(Ah) | 314 | ||||||||||
