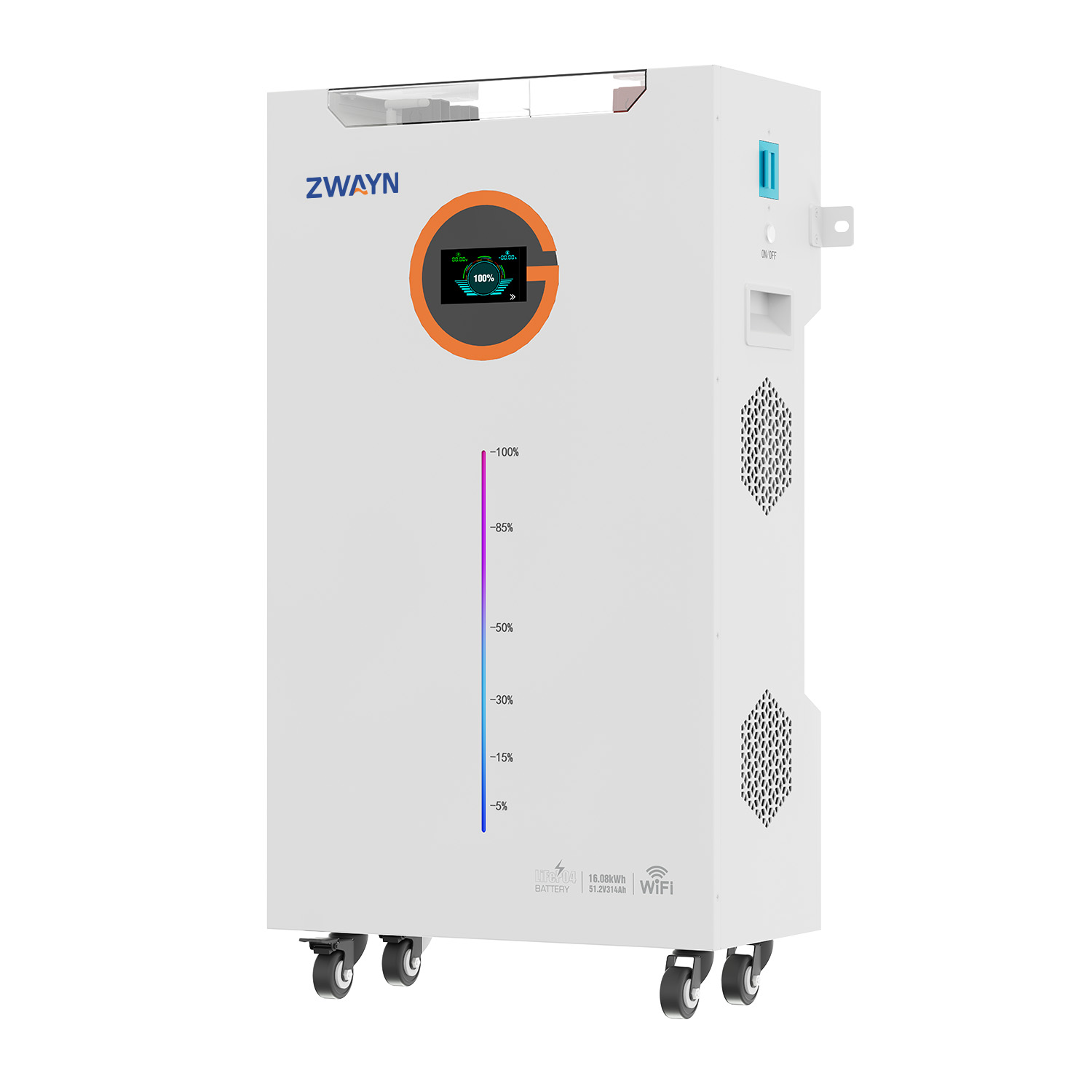

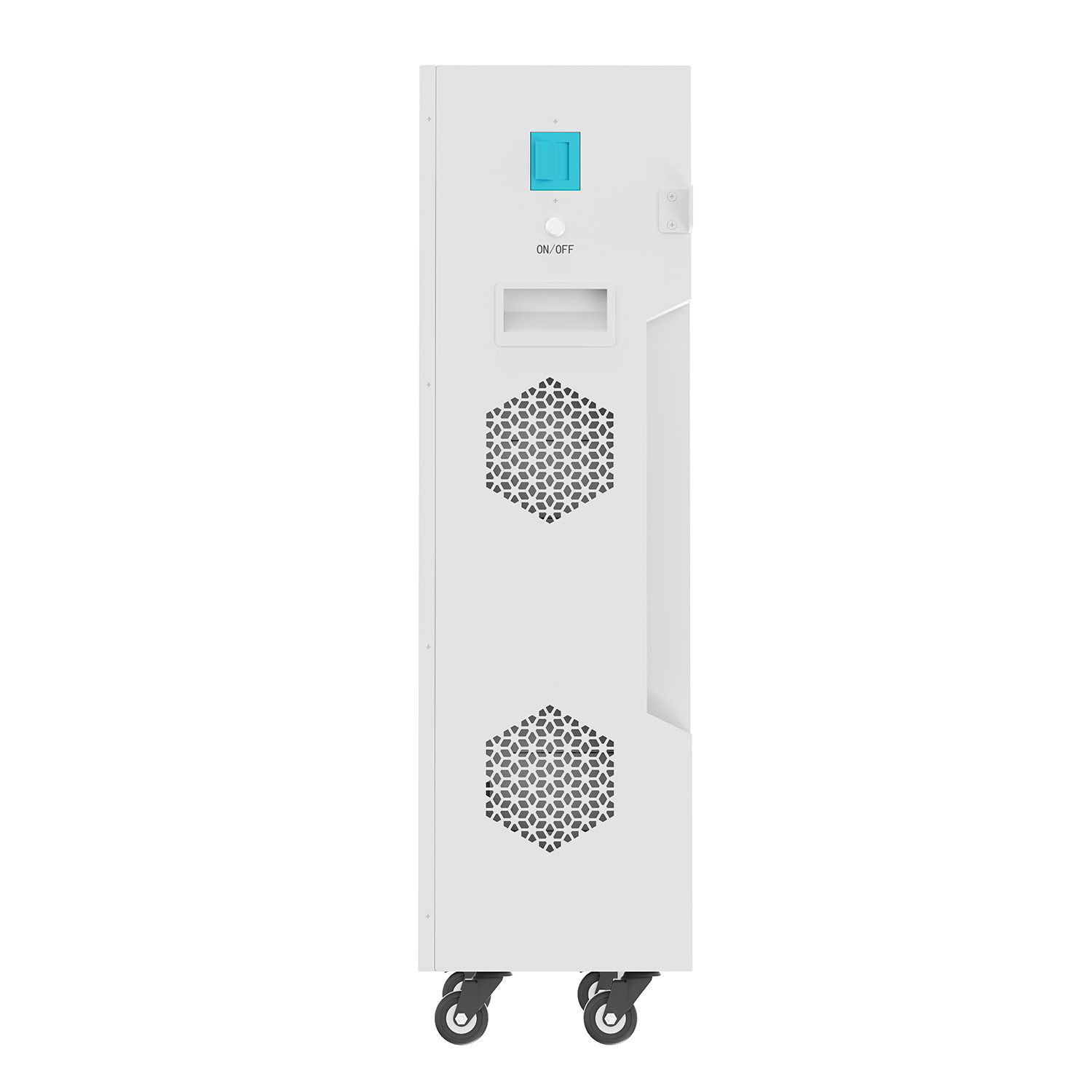

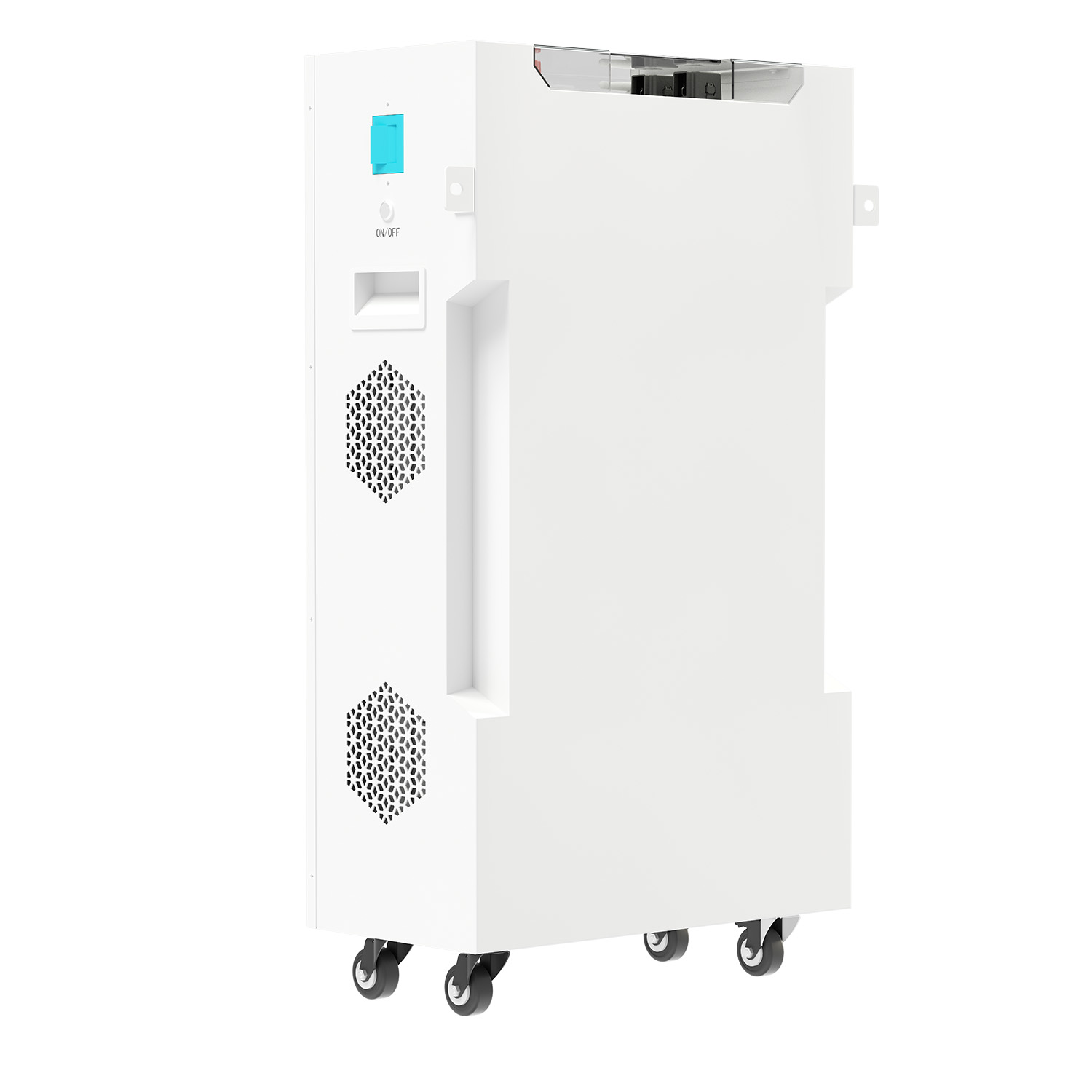

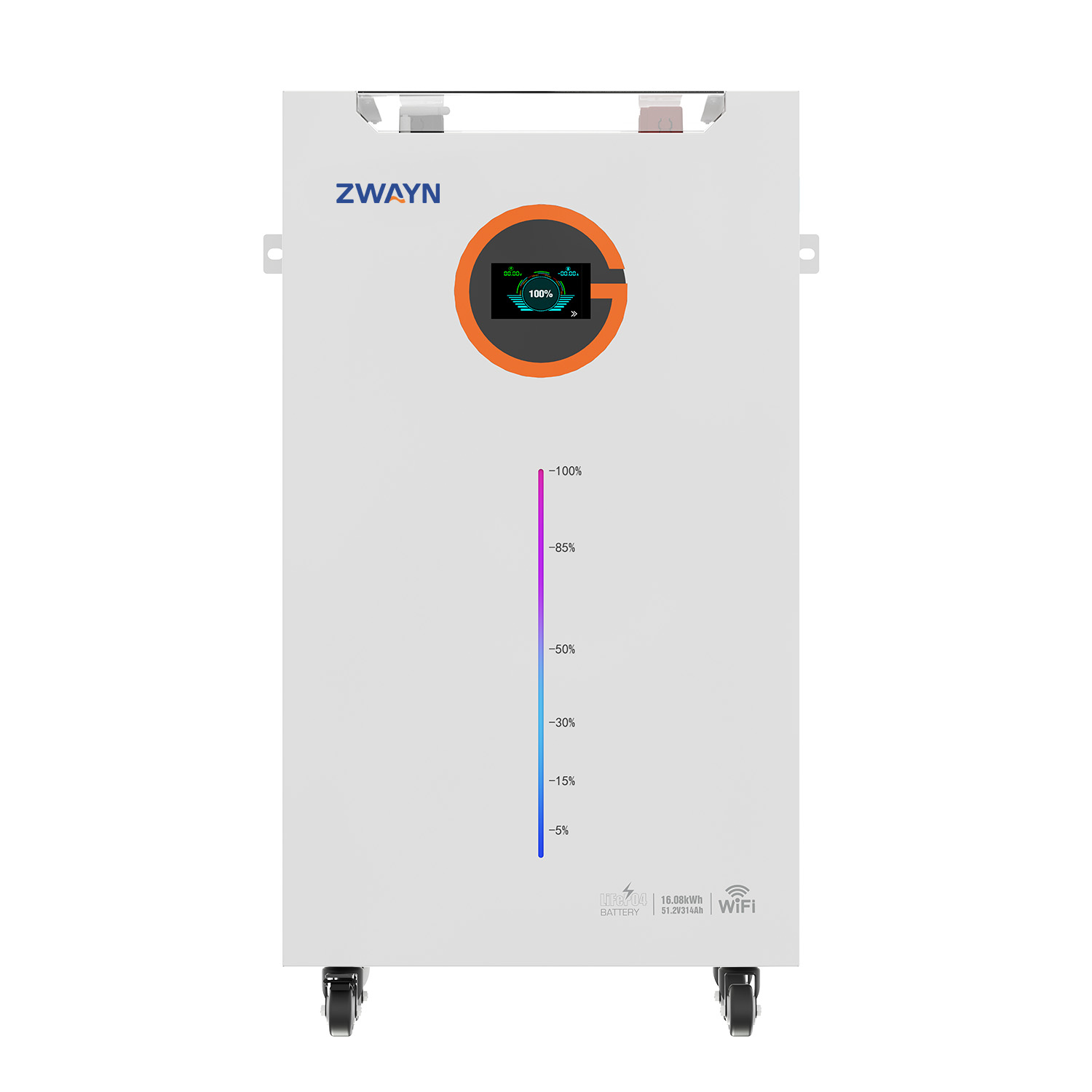

ES-BOX34 MAX+16.08kWh
ES-BOX34 Series battery features 5.12/10.24/14.34/16.08kWh high-capacity design withdoubled energy density. Premium LiFePO4 cells ensure safety and longevity, ideal forresidential and commercial applications.
Application scenarios
Product Features
BMS algorithms and Cloud to achieve BMS 2A full-time balancing, ensureaccurate SOC.
Smart BMS
Intelligently identifythe master-slave batteriesauto DlP address
Easy maintenance
Compact and lightweightfor easy installation
OTA
OTA Remote upgrade,simple maintenance
Deep Cycle
≥8000 Cycles (25°C+2°C,0.5C,80%DОD@65%EOL)
| Product Model | ES-BOX34 | ES-BOX34 PLUS | ES-BOX34 MAX | ES-BOX34 MAX+ |
| Nominal Energy | 5.12kWh | 10.24kWh | 14.34kWh | 16.08kWh |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 280Ah | 314Ah |
| Cell Type | LFP | LFP | LFP | LFP |
| Standard Charge Voltage | 56.8V | 56.8V | 56.8V | 56.8V |
| Max.Charge/Discharge Current | 100A | 150A | 200A | 200A |
| Discharge Cut-Off Voltage | 44.8V | 44.8V | 44.8V | 44.8V |
| Parallel Function | Parallels: Max.16, Max.33, Max.64 (Optional) | |||

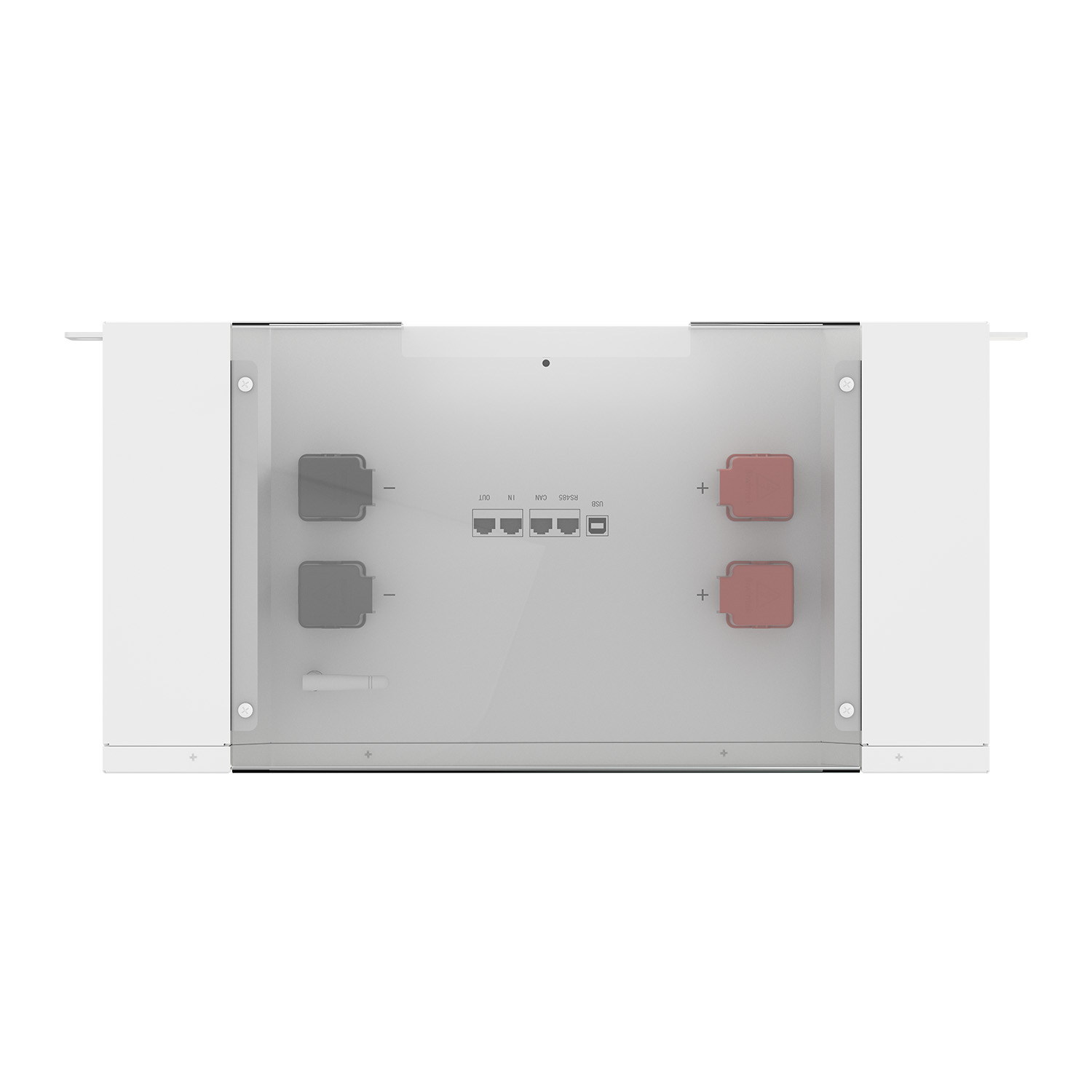

| Communication Interface | RS485. USB. CAN | |||
| Cycle Life | ≥8000 Cycles (25°C±2°C, 0.5C, 90%DOD@65%EOL) | ≥10000 Cycles (25°C±2℃, 0.35C, 90%DOD@65%EOL) | ||
| Charge Temperature Range | 0~55°℃ | |||
| Discharge Temperature Range | -20~55°℃ | |||
| Certification | Pack: CEI 0-21/CE/IEC 62619/UL1973 by Intertek/MSDS/UN38.3 Cell: UL1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3 |
|||
| Dimension | 480*600*165mm (Excluding mounting ears and support feet) |
480*650*245mm (Excluding wall mount brackets) |
490*840*250mm (Excluding Wheels) |
|
| Net Weight | 52Kg | 96Kg | 122Kg | 122Kg |
| Installation Method | wall Mounted/Floor Standing | |||
| Warranty | 10 years warranty, 15 years design life | |||
| Energy Throughput (1) | 22MWh | 44MWh | 62MWh | 70MWh |
| Display | 3.2″ LCD Touch Screen | 4.3″ LCD Touch Screen | ||
| Optional | Circuit Breaker. WiFi Remote Monitoring | |||
| Protection Grade | IP20 | |||
